产品图片 | Part No. | Package Type | Configuration | MOSFET Type | VDS (V) | VGS (V) | Vth (V) | RDS(ON) (mΩ) max. at VGS=10V | RDS(ON) (mΩ) max. at VGS=4.5V | RDS(ON) (mΩ) max. at VGS=2.5V | RDS(ON) (mΩ) max. at VGS=1.8V | ID (A) Tc=25℃ | ID (A) Tc=100℃ | ESD Diode | 附件 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | SNS20P08 | SOT23-3L | Single | P | -20 | ±12 | -0.4~-0.9 | - | 18.6/24 | 22.8/31 | - | -8 | X | 下载 | |
 | SNS20P18J | DFN2X2-6L | Single | P | -20 | ±12 | -0.3~-1 | - | 12.5/16.5 | 16.5/21 | - | -18 | X | 下载 | |
| | SNS20P11J | DFN2X2-6L | Single | P | -20 | ±12 | -0.4~-0.9 | - | 16/21 | 21/27 | - | -18 | X | 下载 | |
| | SNS2N7002 | SOT23 | Single | N | 60 | ±20 | 0.7-2 | 1300/2000
| 1500/2000
| -
| -
| 0.45 | - | O | 下载 |
| | SNS3401 | SOT23 | Single | P | -30 | ±12 | 0.7-1.2 | 47/55
| 55/70
| 65/85
| -
| 4.2 | - | X | 下载 |
| | SNS3415 | SOT23 | Single | P | -20 | ±12 | 0.4-1 | - | 30/40 | 35/60 | - | 5 | - | O | 下载 |
| | SNS2305 | SOT23 | Single | P | -20 | ±12 | 0.5-1 | - | 40/50 | 50/65 | - | 4.1 | - | X | 下载 |
| | SNS2301 | SOT23 | Single | P | -20 | ±12 | 0.7-1.2 | - | 66/80 | 100/135 | - | 3 | - | X | 下载 |
| | SNS30P09 | SOT23-3L | Single | P | -30 | ±20 | -1~-2.5 | 20/25 | 27/38 | '- | '- | -9 | -5 | X | 下载 |

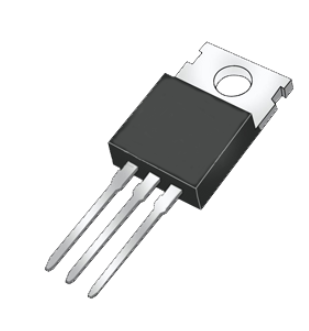

 | SNS130N100 | TO-220 | Single | N | 100 | 20/-12 | 2-4 | 5/5.5
| - | - | - | 130 | - | X | 下载 |
| | SNS130N100 | TO-220 | Single | N | 100 | 20/-12 | 2-4 | 5/5.5
| - | - | - | 130 | - | X | 下载 |
| | SNS80N100 | TO-220 | Single | N | 100 | 20/-12 | 1-2.5 | 7/9
| 10/12
| - | - | 80 | - | X | 下载 |
| | SNS59N100 | TO-220 | Single | N | 100 | 20/-12 | 1-2.5 | 11/13
| 17/20
| - | - | 59 | - | X | 下载 |
| | SNS70N100K | TO-252 | Single | N | 100 | 20/-12 | 1-2.5 | 7/9
| 10/12
| - | - | 70 | - | X | 下载 |
| | SNS50N100K | TO-252 | Single | N | 100 | 20/-12 | 1-2.5 | 11/13
| 17/20
| 50 | X | 下载 | |||
| | SNS100N45K | TO-252 | Single | N | 100 | ±20 | 2.2-3.8 | 16.5/21
| 22/34
| 45 | X | 下载 | |||
| | SNS100N45G | PDFN5*6 | Single | N | 100 | ±20 | 2.2-3.8 | 16/20
| 21/33
| 45 | X | 下载 | |||
| | SNS12N10S | SOP-8 | Single | N | 100 | 20/-12 | 1-2.5 | 8/10
| 11/13.2
| - | - | 12 | - | X | 下载 |
| | SNS10N10S | SOP-8 | Single | N | 100 | 20/-12 | 1-2.5 | 12/14
| 18/21
| -
| -
| 10 | - | X | 下载 |
| | SNS85N200D | TO-263-2L | Single | N | 85 | ±20 | 2.4-3.8 | 2.6/3.0
| 200 | X | 下载 | ||||
| | SNS85N120D | TO-263-2L | Single | N | 85 | ±20 | 2-4 | 4.0/5.2
| 120 | X | 下载 | ||||
| | SNS80N80D | TO-263-2L | Single | N | 75 | ±20 | 2-4 | 6.5/8
| 80 | - | X | 下载 | |||
| | SNS68N06G | DFN5*6 | Single | N | 60 | ±20 | 1.2-2.5 | 14/16
| 18/20
| - | - | 50 | - | X | 下载 |
| | SNS50N06 | TO-220 | Single | N | 60 | ±20 | 1-3 | 17/21
| 20/24
| - | - | 50 | - | X | 下载 |
| | SNS60N06 | TO-220 | Single | N | 60 | ±20 | 1.2-2.5 | 15/17
| 19/21
| - | - | 50 | - | X | 下载 |
| | SNS50N06K | TO-252 | Single | N | 60 | ±20 | 1.2-2.5 | 14/16
| 18/20
| -
| -
| 50 | - | X | 下载 |
| | SNS30N06K | TO-252 | Single | N | 60 | ±20 | 1.2-2.5 | 26/30
| 30/38
| -
| -
| 30 | - | X | 下载 |
| | SNS60N04G | PDFN5*6 | Dual | N+N | 40 | ±20 | 1-2.5 | 7.2/9.0
| 9.5/12
| 60 | X | 下载 | |||
| | SNS40N200F | TO-220 | Single | N | 40 | ±20 | 1-3 | 1.5/2.0
| 2.1/2.8
| 200 | X | 下载 | |||
| | SNS3901 | TO-252-4L | Dual | N+P | ±30 | ±20 | 1-2.5 | 27/32
| 40/56
| 24/-22 | X | 下载 | |||

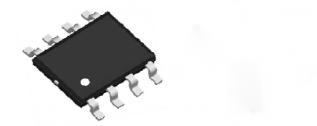

| | SNS4606 | SOP8 | Dual | N+P | ±30 | ±20 | 1-2.5 | 23/28
| 28/44
| -
| -
| 6.9 | - | X | 下载 |
| | SNS15P03 | PDFN3X3 | Single | P | -30 | ±20 | 1.1-2.3 | 15/18
| 20/23
| -
| -
| 30 | - | X | 下载 |
| | SNS4407 | SOP8 | Single | P | -30 | ±20 | 1-3 | 13/19
| 22/30
| -
| -
| 12 | - | X | 下载 |
| | SNS4435 | SOP8 | Single | P | -30 | ±20 | 1-3 | 16/20
| 27/35
| -
| -
| 10.5 | - | X | 下载 |
| | SNS3407 | SOT23 | Single | P | -30 | ±20 | 1-2.5 | 54/70
| 80/95
| -
| -
| 4.1 | - | X | 下载 |
| | SNS3401S | SOT23-3 | Single | P | -30 | ±12 | 0.7-1.2 | 47/55
| 55/70
| 65/85
| -
| 4.2 | - | X | 下载 |
| | SNS4842 | SOP8L | Dual | N+N | 30 | ±20 | 1.4-2.4 | 14.5/19
| 19.5/24
| 8 | X | 下载 |
